Using a cord filled with microcapsules and granules, this technology provides protection for large objects with a volume up to 2 000 litters based on the
production of fire protection plates.
In this method, fires are extinguished through reactive impulse extinguishing and as close as possible to potential dangers.
The material maintains the operability of electronic systems, does not damage equipment, is dielectric, and is able to operate in humid, hot, and smokey conditions.
Despite its autonomy, this tool can be used in conjunction with smart signalling and triggering devices that are compatible with the corresponding software.

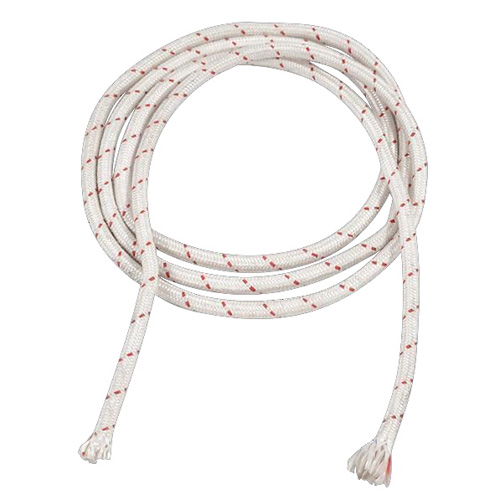

FST Cord Application
The FST cord should be evenly distributed along the frontal plane of the entire protected object by laying it out in a "Snake" pattern from left to right (or right to left) and from top to bottom.
The first line of FST cord should be installed no more than 5-10 cm from the top of the protected object.
Using a 15 to 30 cm pitch, the rest of the turns of the FST Cord run along the bottom line of the protected object.
FST Cord excess length is randomly distributed along the bottom contour of the protected object.
Using the self-adhesive fasteners included in the delivery set, the FST cord is attached to the side walls of the protected object.
FST CORD FASTENER
FST fire cord mounts are made of specially coated steel, ensuring 100% electrical conductivity (dielectric).
In some cases, third-party mounts had a negative effect on the installation, influenced its operation, and in some cases, fell off, violating the system's integrity.
The company has therefore developed its own fastening, which is guaranteed to provide weather and seismic resistance, so the structure remains inside the protected volume reliably.
Sizes and weights CORD
Table of protected volumes of FST CORD (including Weight and Length)
